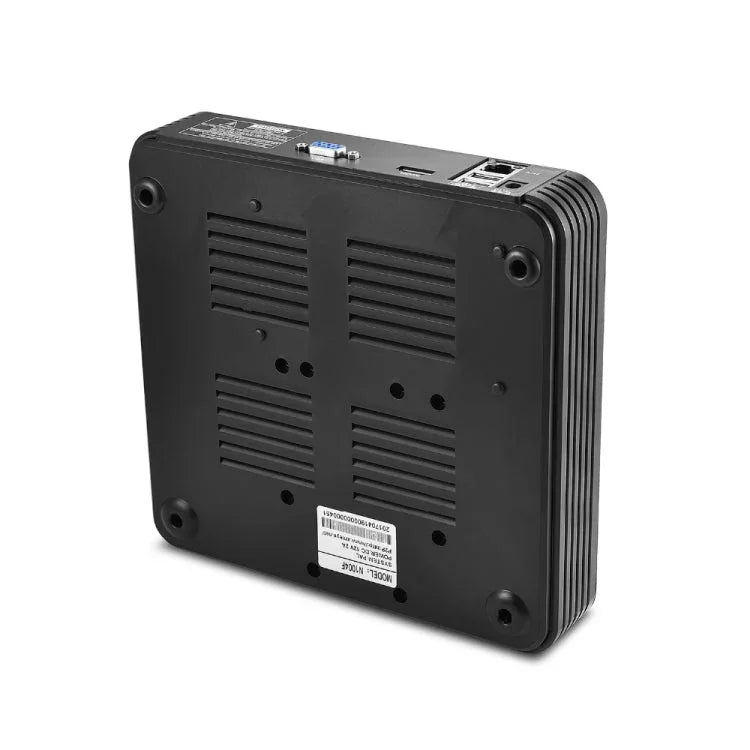

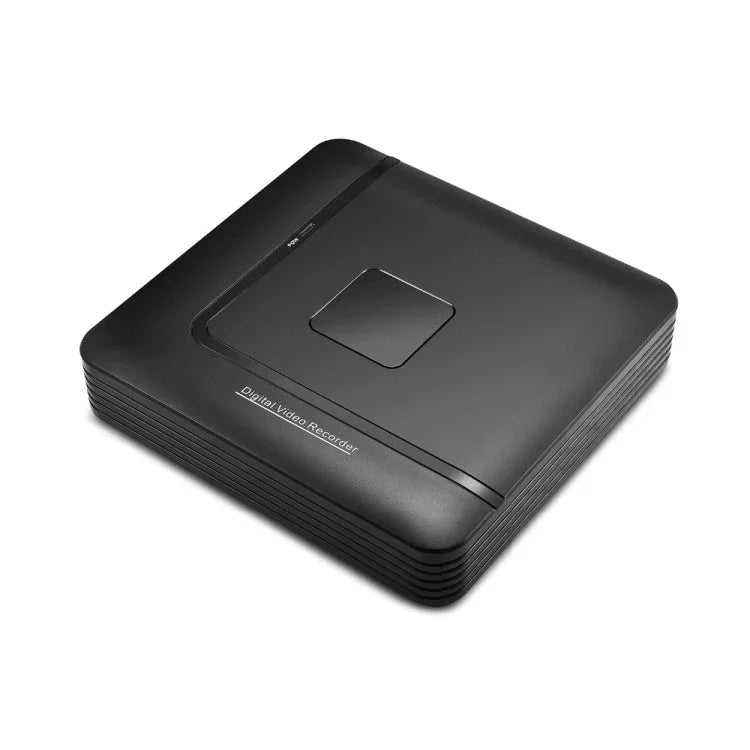

Mini NVR Full HD 8-Channel CCTV Security NVR 1080P ONVIF Network Video Recorder for IP Camera

Network Interface:RJ45 10/100M
Video Input Interface:RJ45
Wireless Security:WEP
Network Protocol:SMTP,PPPoE,HTTP,FTP,DHCP
Supported Operating Systems:Microsoft Windows 7,Microsoft Windows XP
Audio Compression Format:G711A
Audio Input:No
IP Mode:Static IP address,Dynamic IP address
Backup Type:Hard Drive,USB Flash Divers
Audio Output:None
Technology:Network
Alarm Action:FTP Photo
Video Resolution:1080P
Supported Mobile Systems:for iPhone OS,Android
Hard drive Interface Type:SATA
Video Output:1VGA + 1HDMI
e-Cloud(P2P):Yes
Two-way Audio:No
POE:None
Compression Format:H.264
Video Standard:NTSC,PAL
Resolution:Full HD1080P
ONVIF:Yes ( ONVIF 2.0 )
Input For 8Channel NVR:8*1080P/12*960P
Playback:2*1080P/4*960 For 4CH ; 2*1080P/4*960P/4*720P For 8CH
Output:1*1080P HDMI /1*VGA
Dimention:21cm(L)*20cm(W)*4cm(H)
Features :
1.H.264 High profile compression algorithm ideal for standalone NVR
2.Realtime live display up to 4/8 cameras
3.Pentaplex function:live,recording,playback,backup & remote access;
4.Support Dual-streams,to make mobile monitoring very easy,flexible for network transmission
5.Smart video detection:motion detection,video blind,video loss
6.Smart camera settings:privacy masking,camera lock,color setting,and tittle display
7.Easy backup methods: USB devices,remote network and client software backup
8.Alarm triggering screen tips,buzzer,PTZ preset,e-mail &FTP upload
9.Smart HDDs Management:non-working HDD hibernationg,HDD faulty alarm,Raid function
10.Powerful network software:built-in web server,multi-DVR client &SMS Networking access for remote live viewing,recording,playback,setting,system statu,event log,e-mail & ftp function
11.Support DHCP / PPPOE / FTP / DNS / DDNS / NTP / Email alarm / IP right management / IP search / network alarm center functions, support web client, standalone client and SDK.
12.With the sound system for the protection circuit, unique triple watchdog function, very low power consumption, to ensure the equipment never be hang up.
With the unique black box technology, can monitor the whole run process of the equipment, can greatly reduce the maintenance costs.
13.Enable strong multi-way synchronization with max 1/4 channel playback, realize the zero-delay between playback channels
14. Support Standard Onvif 2.0 protocal
15.Real P2P : Cloud : XMEYE.NET ; APP :XMEYE

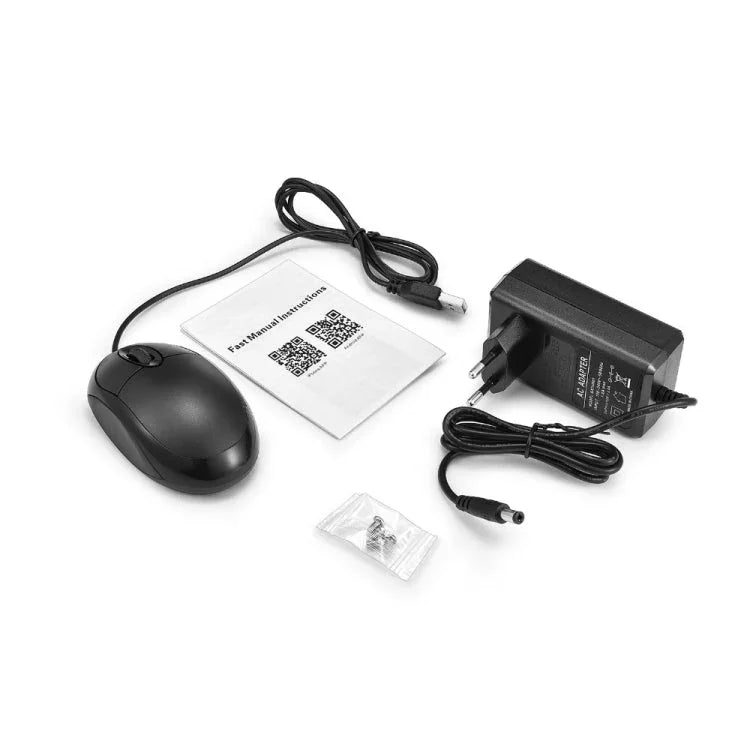

Package Included:
4CH/8CH NVR x 1
Mouse x 1
Power Supply for NVR x 1
Users Manual x 1
